Run a Multi-turn LLM experiment¶

Train LLMPPO against a language-based gym. Multi-turn means advantage_granularity is turn (the default on a simulation environment). Token-level advantages are the other setting, used more often on reasoning tables.

Prerequisites¶

Advanced Training project.
A validated language-based environment. It shows up as an RL Environment row in the wizard.

1. Open the project¶

On Experiments, open your Advanced Training project.

Advanced Training project experiments table — The Advanced Training project page.¶

2. New experiment¶

Click New experiment, name it, and save to open the wizard.

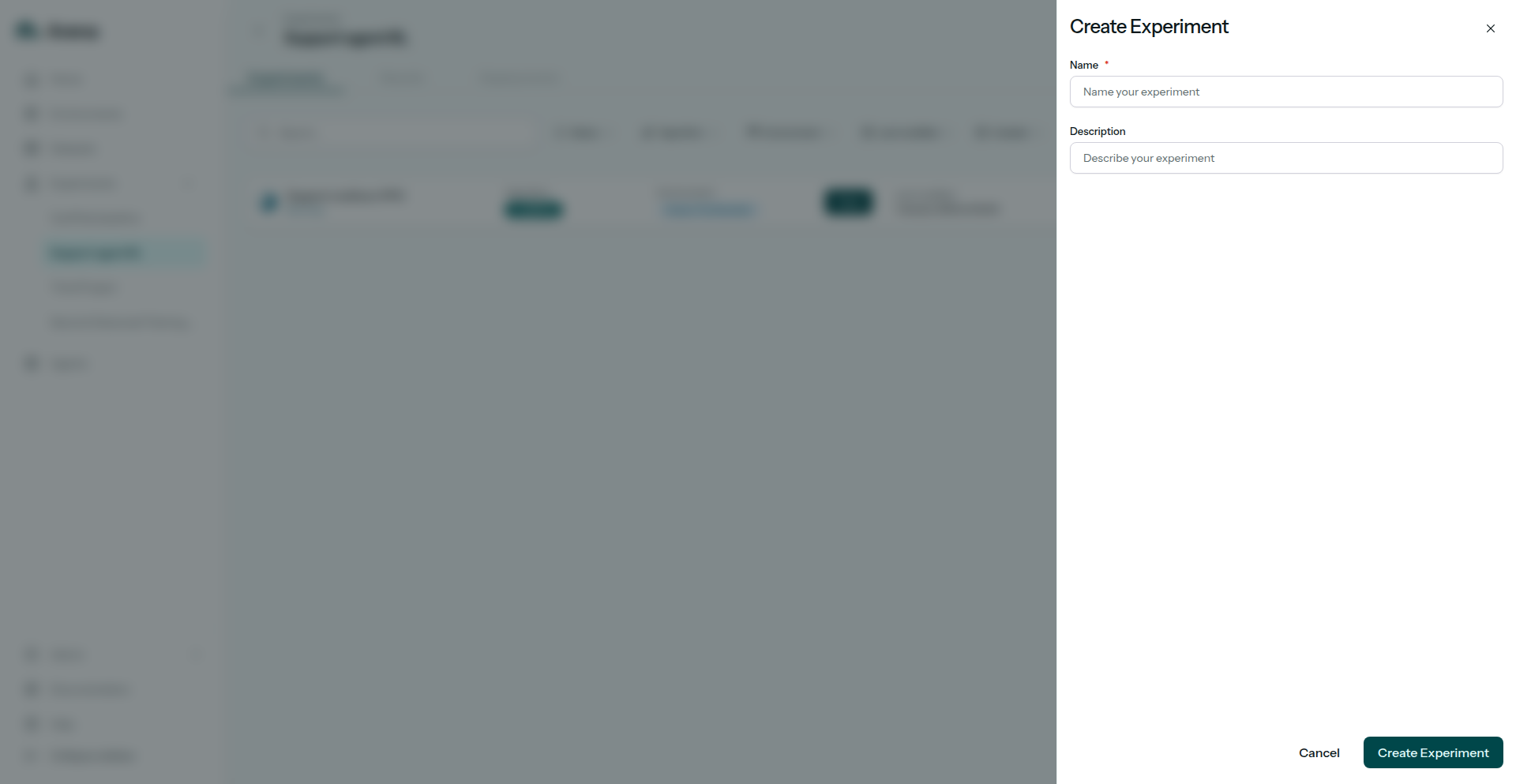

New experiment dialog in advanced project — Creating a new experiment.¶

3. Environment step¶

On Environment, select the language-based gym (use Select version if the grid asks).

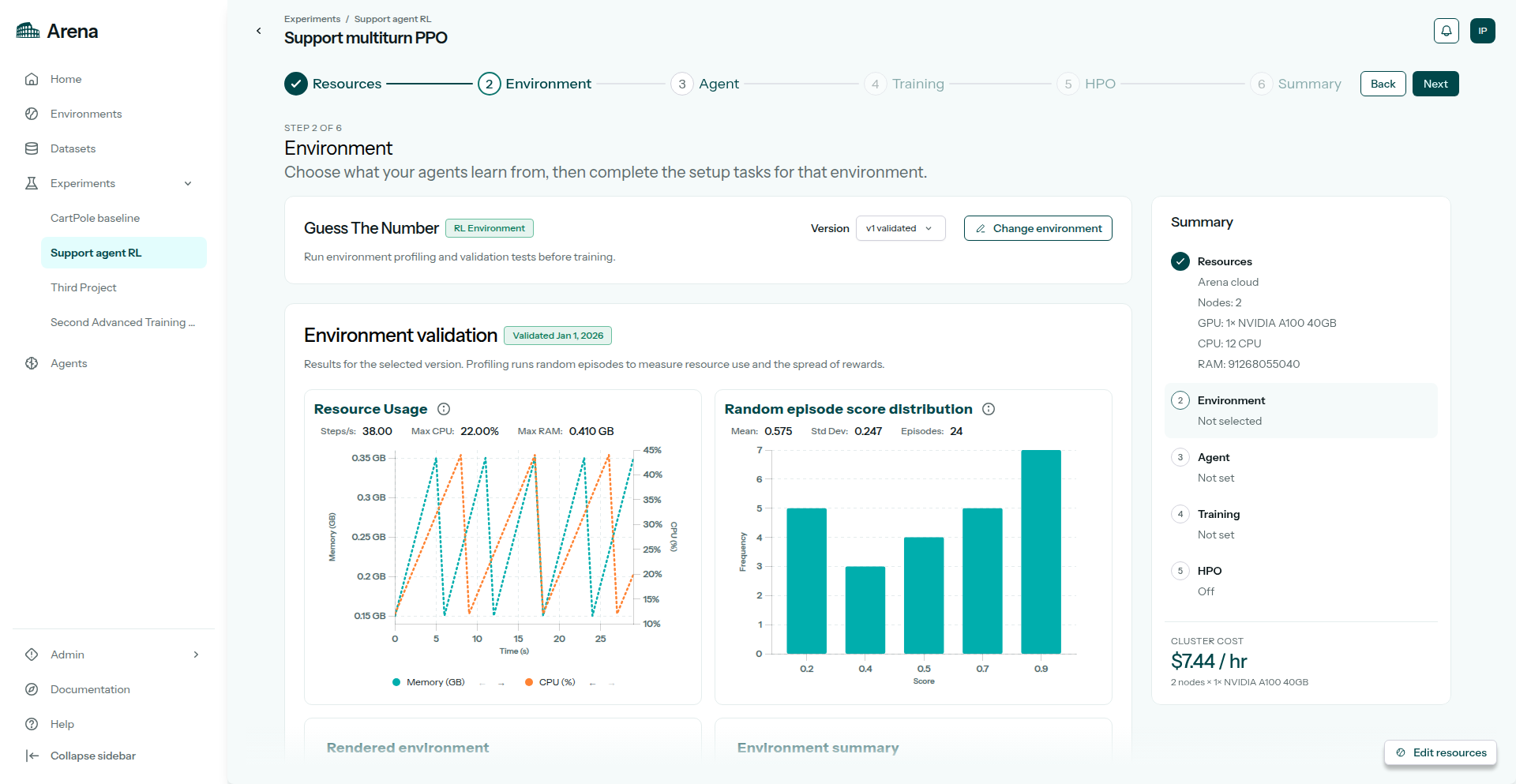

Wizard environment step with a language-based gym selected — Selecting a language-based gym in the wizard.¶

4. Agent¶

The catalog algorithm is LLMPPO. On a language-based gym the Agent step labels it PPO. Select PPO, pick a pretrained model, and confirm advantage granularity is turn. Click Next.

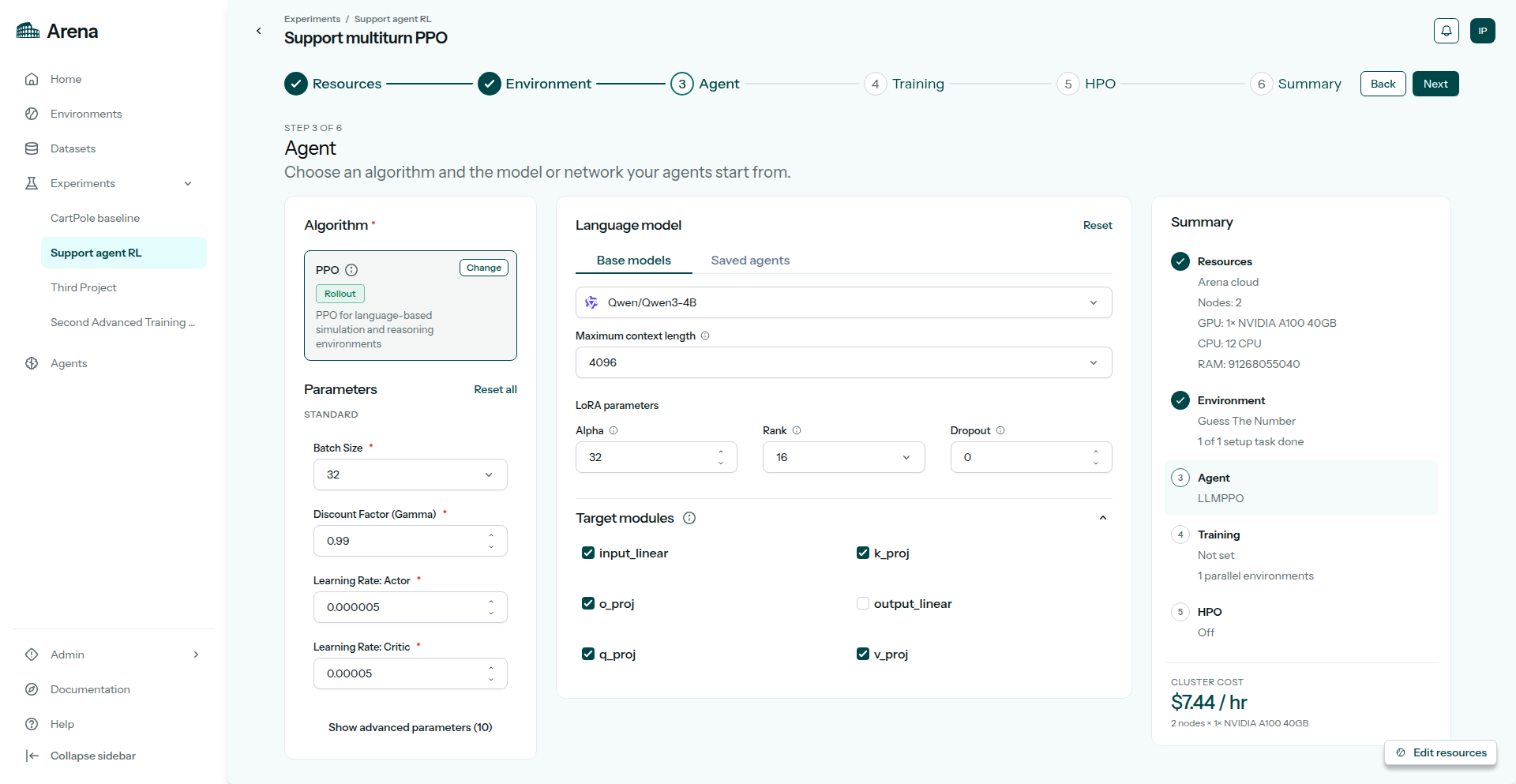

Wizard agent step with PPO selected — The **Agent** step with **PPO**.¶

5. Training¶

Set training steps and related options, then continue to HPO or Summary.

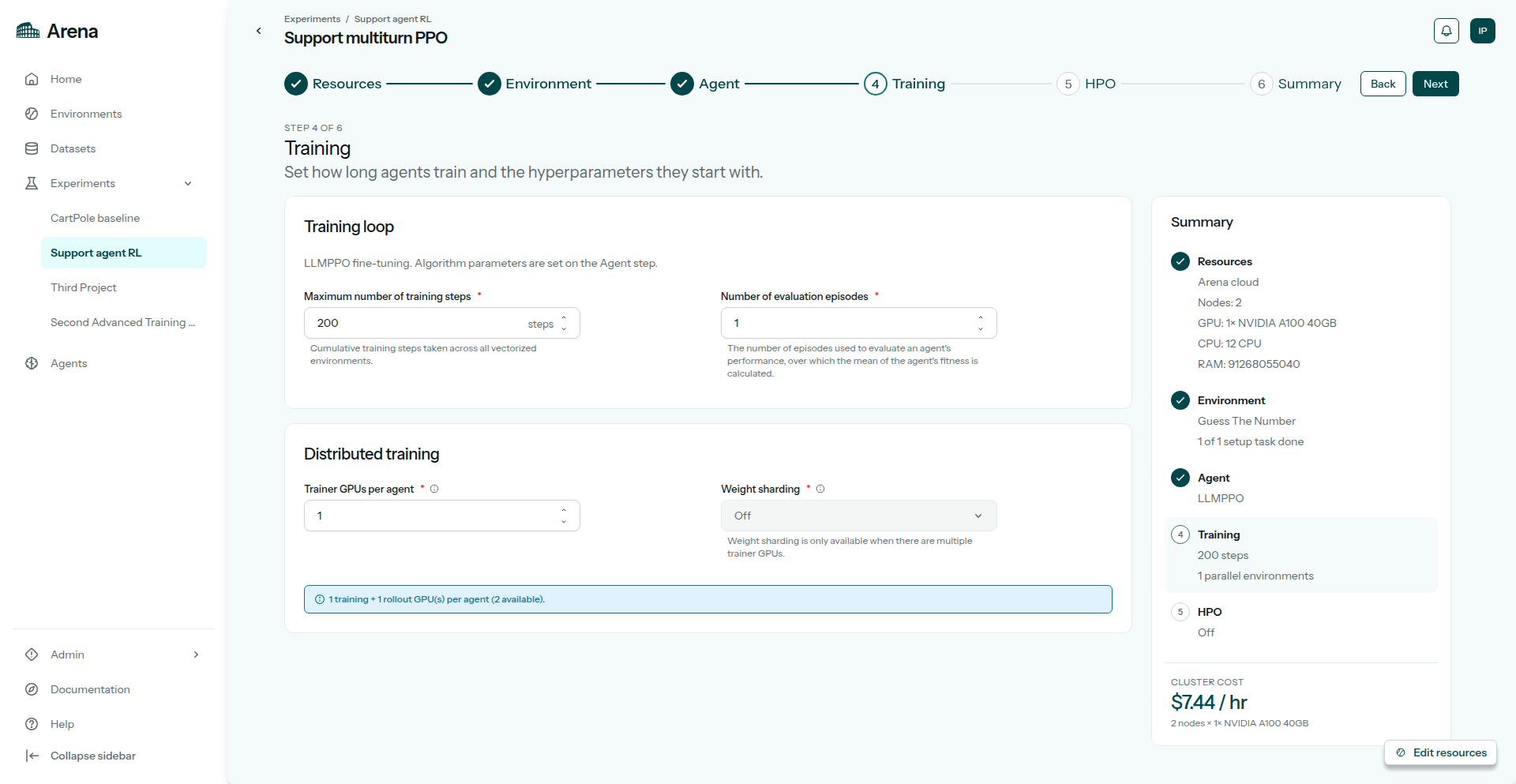

Wizard training step — The **Training** step.¶

6. Summary¶

Review the configuration on Summary.

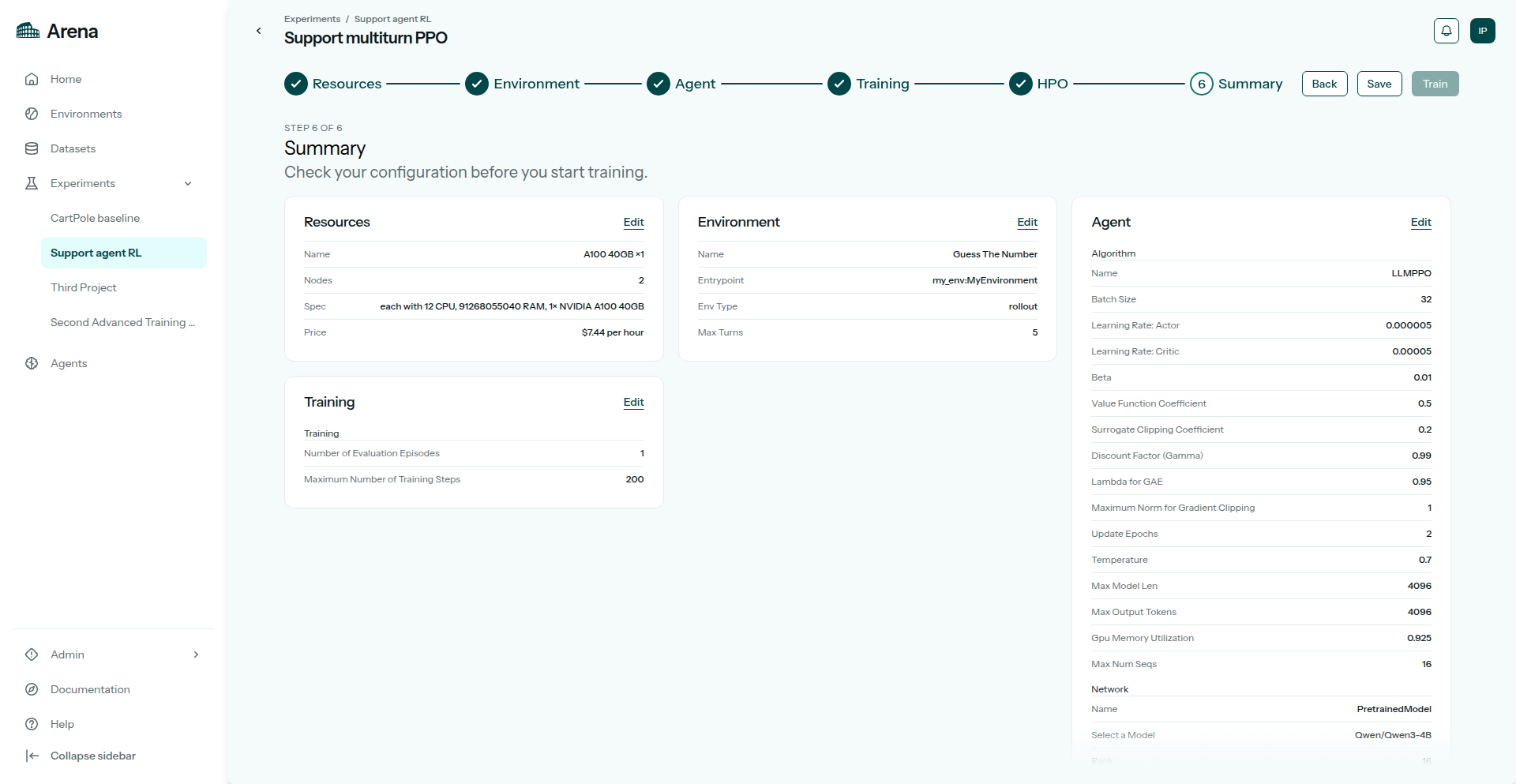

Wizard summary before train — **Summary** before starting the run.¶

7. Running experiment¶

Click Train. The experiment row shows status while the job runs.

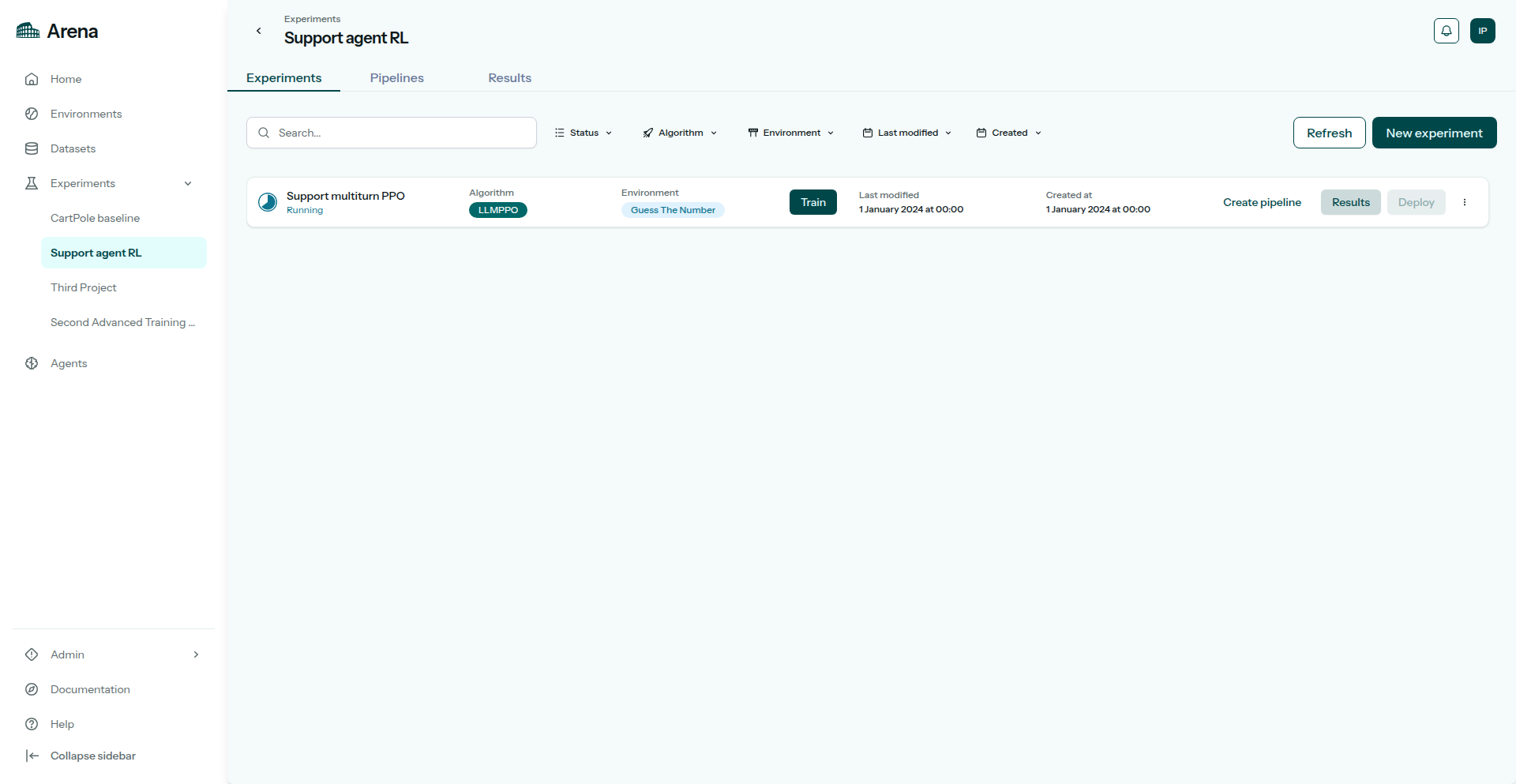

Experiments table with running status — An experiment with an active training status.¶

From the terminal¶

Save a default spec from Python as run-spec.json, then submit. Copy a resource id from arena resources list. List gym entrypoints with arena env entrypoints ticket-sim --version v1.

Install the CLI and sign in (Authentication):

pip install "agilerl[arena]"
arena login
# or: export ARENA_API_KEY=arena_pat_…

import json
from pathlib import Path

from agilerl.arena import ArenaClient

with ArenaClient() as client:
    spec = client.get_default_run_spec(
        algorithm="LLMPPO",
        gym_env="ticket-sim",
    )
    spec["algorithm"]["advantage_granularity"] = "turn"
    Path("run-spec.json").write_text(json.dumps(spec, indent=2))

arena env entrypoints ticket-sim --version v1

arena resources list

arena experiments submit ./run-spec.json --project llm-work --experiment-name llmppo-run --resource-id a2-highgpu-1g --num-nodes 2

On a language gym the default spec already uses advantage_granularity turn.

Python¶

from agilerl.arena import ArenaClient

with ArenaClient() as client:
    spec = client.get_default_run_spec(
        algorithm="LLMPPO",
        gym_env="ticket-sim",
    )
    spec["algorithm"]["advantage_granularity"] = "turn"
    client.submit_experiment(
        manifest=spec,
        project="llm-work",
        resource_id="a2-highgpu-1g",
        experiment_name="llmppo-run",
        num_nodes=2,
    )
    print(client.list_experiments(project="llm-work"))
